Automated Trading – S/R Double Bottom / Double Top (NT 8)
Only the NinjaTrader 8 version of the S/R Double Bottom / Double Top indicator is compatible with BloodHound from SharkIndicators or can be used in the Market Analyzer/Strategy Builder of NinjaTrader.
You can call it as well from your own NinjaTrader indicators or strategies. It exposes the following data series:
| Data Series/Plot | Type | Description / Value |
| DoubleBottom_Bars_Ago | <Integer> | indicates a Double Bottom on the current bar with a Swing Low N bars ago |
| DoubleTop_Bars_Ago | <Integer> | indicates a Double Top on the current bar with a Swing High N bars ago |
| DoubleBottom_Price | <Double> | Low Price of the Swing Low from N bars ago |
| DoubleTop_Price | <Double> | High Price of the Swing High from N bars ago |
| Micro_DoubleBottom | <Boolean> | indicates a micro Double Bottom on the current bar |
| Micro_DoubleTop | <Boolean> | indicates a micro Double Top on the current bar |
| Micro_DoubleBottom_IB | <Boolean> | indicates a micro Double Bottom on the current bar with the Low of an Inside Bar (or large tail) N bars ago |
| Micro_DoubleTop_IB | <Boolean> | indicates a micro Double Top on the current bar with the High of an Inside Bar (or large tail) N bars ago |
| Plot Double Bottom/Top |
n/a | Double Bottom/Top with a Swing Low/High N bars ago (Bottom +N, Top -N) |
| Plot Double Bottom/Top micro |
n/a | (micro DB +1) (micro DT -1) |
| Plot Double Bottom/Top IB |
n/a | (micro DB +1) (micro DT -1) |
The following settings can be accessed from BloodHound:
| Indicator Setting | Description |
| swingStrength | Swing strength, also refer here at the bottom of the page |
| tick_Pos_Tolerance | Positive Tolerance, also refer here at the bottom of the page |
| tick_Neg_Tolerance | Negative Tolerance, also refer here at the bottom of the page |
| aTR_Tolerance | “ATR_Tolerance” mode, also refer here at the bottom of the page |
| aTR_Divisor | ATR_Divisor, also refer here at the bottom of the page |
| lookback | Number of bars back to look for support or resistance, also refer here at the bottom of the page |
| lookback_Prior_Day | Use support or resistance from the prior session, also refer here at the bottom of the page |
| useFirstBar | Use the 1st bar of the session as support or resistance, also refer here at the bottom of the page |
| use_Extend_Signals | Extend Signals for two bars, also refer here at the bottom of the page |
| show_mDBDT | Show micro Double Bottoms and micro Double Tops |
| mDBDT_Sensitivity | Sensitivity from 1 to 10 |
| show_IBDBDT | Show Inside Bar Double Bottom/Top with the Low or High of an Inside Bar or a large tail |
| iBDBDT_Sensitivity | Sensitivity from 1 to 10 |
All other settings like e.g. ShowLast200, ShowAlert, SoundFile and all settings for the text or graphics aren’t used by BloodHound.
more on Double Bottom and Double Top

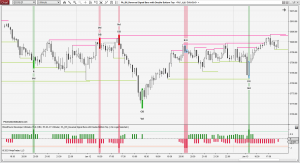

Charts
BloodHound Templates
Calling PASuppResDBDT from a Custom indicator or strategy
Indicator Properties (please see also the settings at the bottom of the indicator page):
PASuppResDBDT(
int swingStrength,
int tick_Pos_Tolerance, int tick_Neg_Tolerance, bool aTR_Tolerance, double aTR_Divisor,
int lookback, bool lookback_Prior_Day, bool useFirstBar, bool use_Extend_Signals,
bool show_mDBDT, int mDBDT_Sensitivity,
bool show_IBDBDT, int iBDBDT_Sensitivity);
NinjScript source code
ExampleForPAI.cs (download) is a small NinjScript source code file, that has a couple of examples in it how to call the Price Action Indicators from another indicator or strategy. If the file is displayed in the browser window you need to right click “Save link as”.
The file needs to be copied to the following folder. …\Documents\NinjaTrader 8\bin\Custom\PriceActionIndicators\
Please contact us for more examples or questions.
